Aluminum electrolytic capacitor with 470µF capacitance and 25V DC rated voltage. Features 60mΩ ESR, 1.19A ripple current, and 20% tolerance. Designed for surface mount applications with a 10mm diameter and 10.2mm height. Operates from -55°C to 105°C, offering 2000 hours of life and AEC-Q200 automotive qualification. Packaged in tape and reel.
PackageRadial
Voltage25V
Capacitance470uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FP1E471AP technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 14% |
| ESR (Equivalent Series Resistance) | 60mR |
| Height | 10.2mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 117.5uA |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 1.19A |
| Ripple Current (AC) | 1.19A |
| RoHS Compliant | Yes |
| Series | FP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 10.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FP1E471AP Datasheet
Download the complete datasheet for Panasonic EEE-FP1E471AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

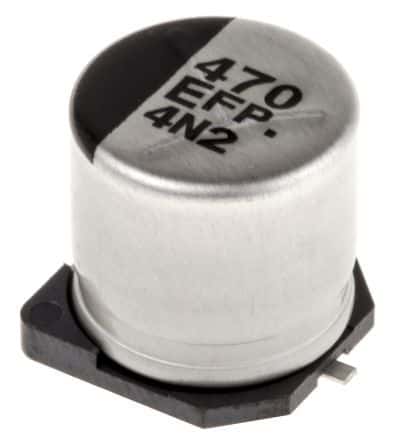

Product Images
