Aluminum electrolytic capacitor, 220µF capacitance, 35V voltage rating, and 20% tolerance. Features 80mΩ ESR, 850mA ripple current, and a 2000-hour lifespan at 105°C. Surface mountable with a cylindrical construction, measuring 8mm diameter and 10.2mm height. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage35V
Capacitance220uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FP1V221AP technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
ESR (Equivalent Series Resistance)
80mR
Height
10.2mm
Lead Free
Lead Free
Lead Pitch
3.1mm
Leakage Current
77uA
Length
10.5mm
Life (Hours)
2000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
850mA
Ripple Current (AC)
850mA
RoHS Compliant
Yes
Series
FP
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
8.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FP1V221AP Datasheet
Download the complete datasheet for Panasonic EEE-FP1V221AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

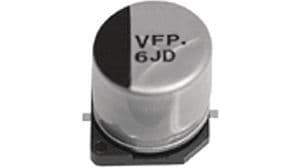

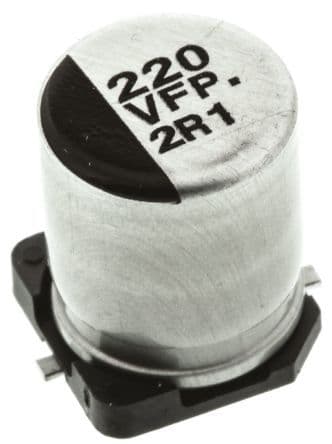

Product Images
