47µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features 260mΩ ESR, 3µA leakage current, and 300mA ripple current. Operates from -55°C to 105°C, with a 2000-hour life rating. Surface mountable in a 6.3mm diameter, 5.8mm height radial can package, supplied on tape and reel. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage35V
Capacitance47uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FP1V470AP technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
260mR
Height
5.8mm
Lead Free
Lead Free
Lead Pitch
1.8mm
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Material
Aluminium
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
300mA
Ripple Current (AC)
300mA
RoHS Compliant
Yes
Series
FP
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FP1V470AP Datasheet
Download the complete datasheet for Panasonic EEE-FP1V470AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

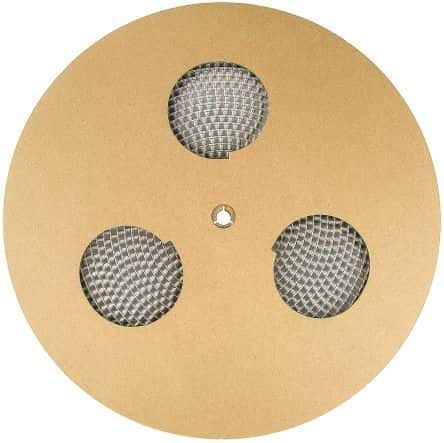

Product Images
