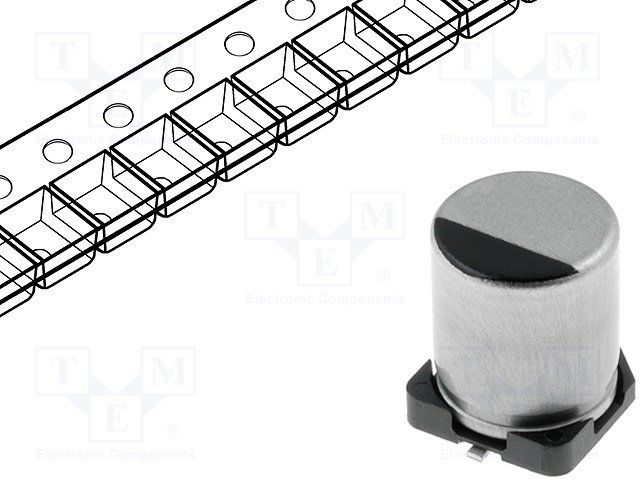

Aluminum electrolytic capacitor, 220µF capacitance, 10V DC rated voltage, with a 20% tolerance. Features a 160mΩ ESR and 600mA ripple current capability. This cylindrical, surface-mount device has a 6.3mm diameter and 7.7mm height, designed for operation between -55°C and 105°C. It offers a 2000-hour life expectancy and is RoHS compliant.
Sign in to ask questions about the Panasonic EEE-FPA221XAP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-FPA221XAP technical specifications.
| Capacitance | 220uF |
| Package/Case | SMD/SMT |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 19% |
| ESR (Equivalent Series Resistance) | 160mR |
| Height | 7.7mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.8mm |
| Leakage Current | 3uA |
| Length | 7.7mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 600mA |
| Ripple Current (AC) | 600mA |
| RoHS Compliant | Yes |
| Series | FP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| RoHS | Compliant |
Download the complete datasheet for Panasonic EEE-FPA221XAP to view detailed technical specifications.
