Surface mount aluminum electrolytic capacitor with 220µF capacitance and 20% tolerance. Features a 16V DC rating, 105°C maximum operating temperature, and 2000 hours of life. This cylindrical component offers 160mΩ ESR, 600mA ripple current, and a leakage current of 35.2µA. Constructed for surface mounting with a 1.8mm lead pitch, it measures 6.3mm in diameter and 8mm in length.
PackageSMD/SMT
Voltage16V
Capacitance220uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FPC221XAP technical specifications.
General
| Capacitance | 220uF |
| Package/Case | SMD/SMT |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 16% |
| ESR (Equivalent Series Resistance) | 160mR |
| Height | 7.7mm |
| Height - Seated (Max) | 0.303inch |
| Lead Free | Lead Free |
| Lead Pitch | 1.8mm |
| Leakage Current | 35.2uA |
| Length | 8mm |
| Life (Hours) | 2000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 600mA |
| Ripple Current (AC) | 600mA |
| RoHS Compliant | Yes |
| Series | FP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FPC221XAP Datasheet
Download the complete datasheet for Panasonic EEE-FPC221XAP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

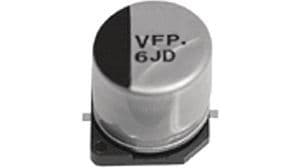

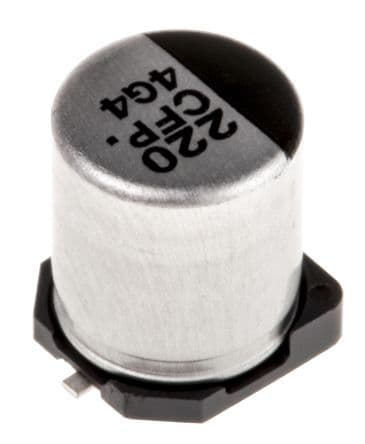

Product Images
