1000µF, 10V, 20% tolerance aluminum electrolytic capacitor for general-purpose applications. Features a radial, cylindrical construction with surface mount termination in an 8mm diameter, 10.2mm height package. Offers 2000 hours of life at 105°C, 850mA ripple current, and 100µA leakage current. Rated AEC-Q200 and RoHS compliant.
PackageRadial
Voltage10V
Capacitance1mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-FT1A102AP technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 80mR |
| Features | General Purpose |
| Height | 10.2mm |
| Height - Seated (Max) | 0.413inch |
| Lead Diameter | 0.9mm |
| Lead Pitch | 3.1mm |
| Leakage Current | 100uA |
| Length | 10.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 850mA |
| Ripple Current (AC) | 850mA |
| RoHS Compliant | Yes |
| Series | FT |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FT1A102AP Datasheet
Download the complete datasheet for Panasonic EEE-FT1A102AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

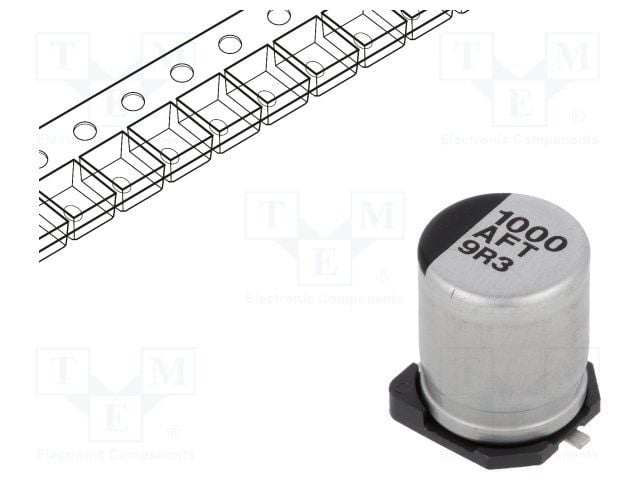

Product Images
