Surface mount aluminum electrolytic capacitor with 68µF capacitance and 20% tolerance. Features a 16V DC rated voltage, 360mΩ ESR, and 240mA ripple current. Operating temperature range is -55°C to 105°C, with a 2000-hour life rating. Cylindrical construction with a 1.5mm lead pitch and 5mm diameter.
PackageRadial
Voltage16V
Capacitance68uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-FT1C680AR technical specifications.
General
Capacitance
68uF
Package/Case
Radial
Construction
Cylindrical
Diameter
5mm
ESR (Equivalent Series Resistance)
360mR
Height
5.8mm
Height - Seated (Max)
0.24inch
Lead Diameter
0.65mm
Lead Free
Lead Free
Lead Pitch
1.5mm
Leakage Current
10.8uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
240mA
Ripple Current (AC)
240mA
RoHS Compliant
Yes
Series
FT
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FT1C680AR Datasheet
Download the complete datasheet for Panasonic EEE-FT1C680AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

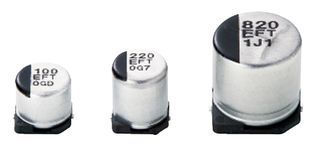

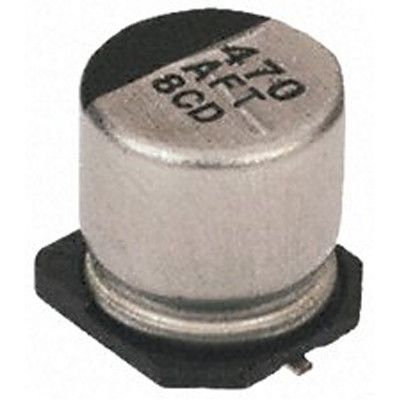

Product Images
