22uF, 25V radial aluminum electrolytic capacitor with 20% tolerance. Features a 4mm diameter, 5.8mm height, and 1mm lead pitch for surface mount applications. Offers a low leakage current of 5.5uA, ESR of 850mR, and ripple current of 160mA. Rated for 2000 hours at 105°C, with a wide operating temperature range of -55°C to 105°C. Compliant with RoHS and AEC-Q200 standards.
PackageRadial
Voltage25V
Capacitance22uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FT1E220AR technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 850mR |
| Height | 5.8mm |
| Lead Diameter | 0.65mm |
| Lead Free | Lead Free |
| Lead Pitch | 1mm |
| Leakage Current | 5.5uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 160mA |
| Ripple Current (AC) | 160mA |
| RoHS Compliant | Yes |
| Series | FT |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FT1E220AR Datasheet
Download the complete datasheet for Panasonic EEE-FT1E220AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

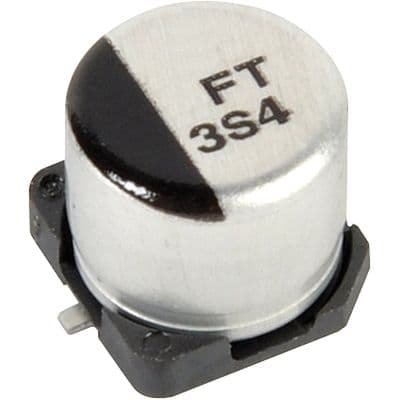

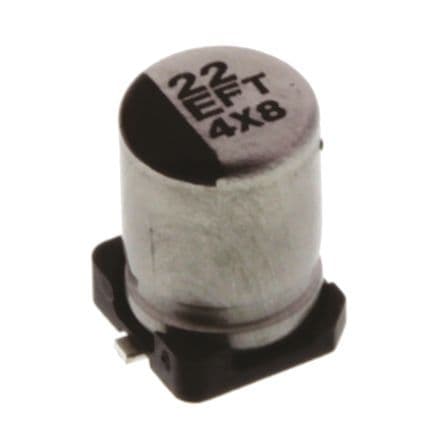

Product Images
