Surface mount aluminum electrolytic capacitor with 470µF capacitance and 20% tolerance. Features a 25V DC voltage rating, 80mΩ ESR, and 850mA ripple current. Operating temperature range from -55°C to 105°C, with a 2000-hour life rating. Cylindrical construction with 8mm diameter and 10.2mm height, suitable for PCB mounting. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage25V
Capacitance470uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FT1E471AP technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
14%
ESR (Equivalent Series Resistance)
80mR
Height
10.2mm
Lead Diameter
0.9mm
Lead Free
Lead Free
Lead Pitch
3.1mm
Leakage Current
117.5uA
Length
10.2mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
850mA
Ripple Current (AC)
850mA
RoHS Compliant
Yes
Series
FT
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FT1E471AP Datasheet
Download the complete datasheet for Panasonic EEE-FT1E471AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

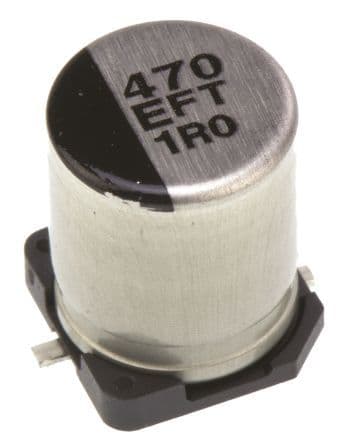

Product Images
