Surface mount aluminum electrolytic capacitor with 68µF capacitance and 20% tolerance. Features a 25V DC rated voltage, 360mΩ ESR, and 240mA ripple current. Operates across a -55°C to 105°C temperature range with a 2000-hour life rating. Constructed with a cylindrical aluminum dielectric, it measures 5mm in diameter and 5.8mm in height, with a 1.5mm lead pitch. This component is RoHS compliant and AEC-Q200 rated.
PackageRadial
Voltage25V
Capacitance68uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FT1E680AR technical specifications.
General
Capacitance
68uF
Package/Case
Radial
Construction
Cylindrical
Diameter
5mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
360mR
Height
5.8mm
Lead Diameter
0.65mm
Lead Free
Lead Free
Lead Pitch
1.5mm
Leakage Current
17uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
240mA
Ripple Current (AC)
240mA
RoHS Compliant
Yes
Series
FT
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FT1E680AR Datasheet
Download the complete datasheet for Panasonic EEE-FT1E680AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

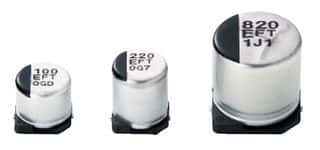

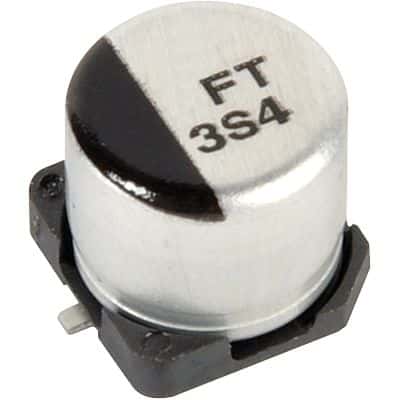

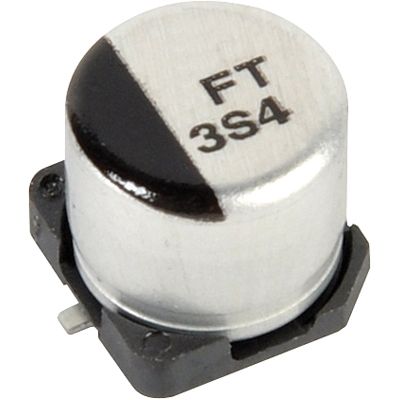

Product Images
