Surface mount aluminum electrolytic capacitor with 100µF capacitance and 20% tolerance. Features a 35V DC rated voltage, 300mA ripple current, and a maximum operating temperature of 105°C. Constructed with a cylindrical radial package measuring 6.3mm in diameter and 5.8mm in height. Includes 260mΩ ESR and 12% dissipation factor, with a rated life of 2000 hours at 105°C. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage35V
Capacitance100uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-FT1V101AP technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dissipation Factor
12%
ESR (Equivalent Series Resistance)
260mR
Height
5.8mm
Lead Diameter
0.65mm
Lead Pitch
1.8mm
Leakage Current
35uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
300mA
Ripple Current (AC)
300mA
RoHS Compliant
Yes
Series
FT
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-FT1V101AP Datasheet
Download the complete datasheet for Panasonic EEE-FT1V101AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

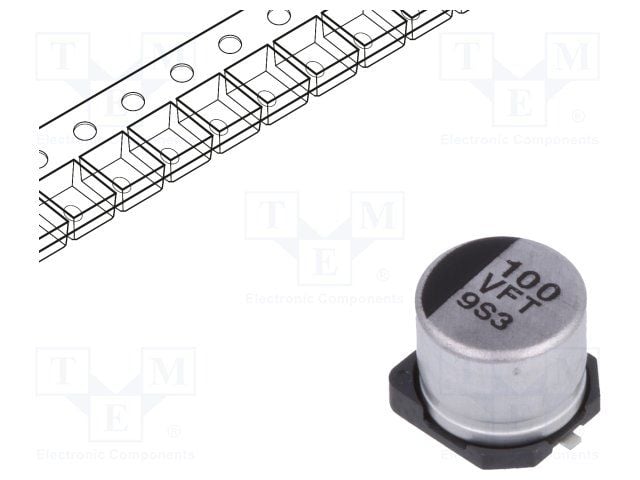

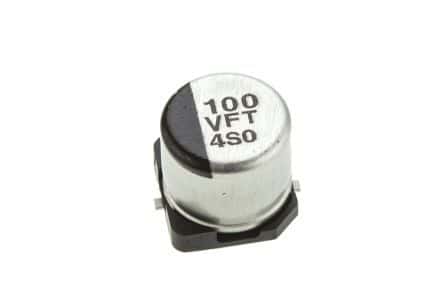

Product Images
