150uF, 25V radial aluminum electrolytic capacitor with 20% tolerance. Features 160mR ESR, 600mA ripple current, and 37.5uA leakage current. Operates from -55°C to 105°C with a 2000-hour life rating. Surface mountable in a 6.3mm diameter, 7.7mm height cylindrical package. RoHS compliant and AEC-Q200 rated.
PackageRadial
Voltage25V
Capacitance150uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-FTE151XAP technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 0.14% |
| ESR (Equivalent Series Resistance) | 160mR |
| Height | 7.7mm |
| Lead Diameter | 0.65mm |
| Lead Pitch | 1.8mm |
| Leakage Current | 37.5uA |
| Length | 7.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 600mA |
| Ripple Current (AC) | 600mA |
| RoHS Compliant | Yes |
| Series | FT |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-FTE151XAP Datasheet
Download the complete datasheet for Panasonic EEE-FTE151XAP to view detailed technical specifications.
No datasheet is available for this part.

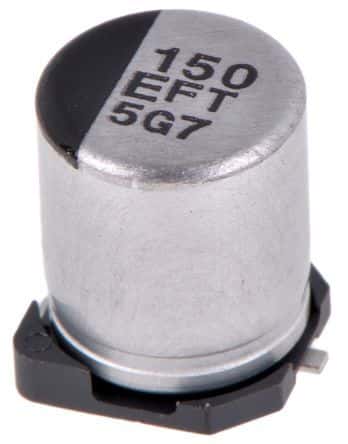

Product Images
