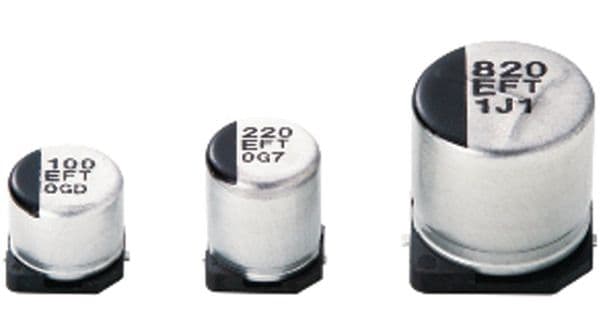

220µF, 25V aluminum electrolytic capacitor with 20% tolerance, designed for surface mount applications. Features a 6.3mm diameter, 7.7mm height, and 1.8mm lead pitch. Offers 160mΩ ESR, 600mA ripple current, and a leakage current of 55µA. Operates across a -55°C to 105°C temperature range with a rated life of 2000 hours. AEC-Q200 qualified and RoHS compliant.
Sign in to ask questions about the Panasonic EEE-FTE221XAP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-FTE221XAP technical specifications.
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 14% |
| ESR (Equivalent Series Resistance) | 160mR |
| Height | 7.7mm |
| Lead Diameter | 0.65mm |
| Lead Pitch | 1.8mm |
| Leakage Current | 55uA |
| Length | 7.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 600mA |
| Ripple Current (AC) | 600mA |
| RoHS Compliant | Yes |
| Series | FT |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| RoHS | Compliant |
