Aluminum electrolytic capacitor, 22µF capacitance, 6.3V voltage rating, and 20% tolerance. Features a cylindrical construction with SMD/SMT termination, measuring 4mm in diameter and 5.4mm in height. Operates within a temperature range of -40°C to 105°C, offering a ripple current of 29mA and a lifespan of 1000 hours at 105°C. Supplied in tape and reel packaging, this component is RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage6.3V
Capacitance22uF
Voltage Rating6.3V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic EEE-HA0J220R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic EEE-HA0J220R technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Height | 5.4mm |
| Height - Seated (Max) | 0.213inch |
| Lead Diameter | 0.65mm |
| Lead Free | Lead Free |
| Lead Pitch | 1mm |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 29mA |
| Ripple Current (AC) | 29mA |
| RoHS Compliant | Yes |
| Series | HA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 650um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA0J220R Datasheet
Download the complete datasheet for Panasonic EEE-HA0J220R to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

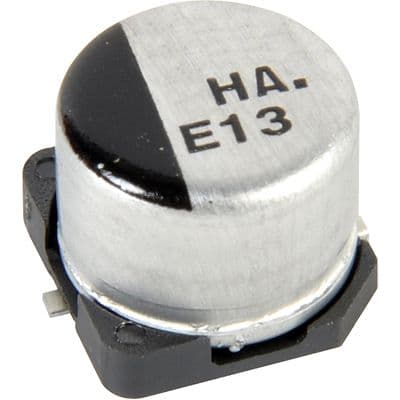

Product Images
