100µF, 16V radial aluminum electrolytic capacitor with 20% tolerance, suitable for surface mount applications. Features a cylindrical construction with a 6.3mm diameter, 5.4mm height, and 1.8mm lead pitch. Operates within a temperature range of -40°C to 105°C, offering 1000 hours of life at rated conditions. Includes a leakage current of 16µA and a ripple current rating of 70mA. This RoHS compliant component is AEC-Q200 rated and supplied in tape and reel packaging.
PackageRadial
Voltage16V
Storage5.4mm
Capacitance100uF
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic EEE-HA1C101WP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic EEE-HA1C101WP technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Height | 5.4mm |
| Lead Diameter | 0.65mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.8mm |
| Leakage Current | 16uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 70mA |
| Ripple Current (AC) | 70mA |
| RoHS Compliant | Yes |
| Series | HA |
| Size | 5.4mm |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 650um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA1C101WP Datasheet
Download the complete datasheet for Panasonic EEE-HA1C101WP to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

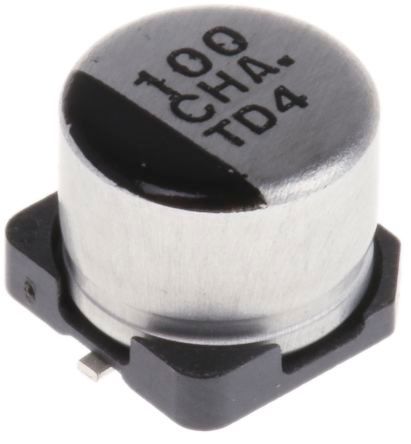

Product Images
