Surface mount aluminum electrolytic capacitor with 470µF capacitance and 16V DC rated voltage. Features a 20% tolerance and 340mA ripple current rating. Designed for 1000 hours of operation at 105°C, with a minimum operating temperature of -40°C. Radial construction in a cylindrical package, measuring 10mm in diameter and 10.2mm in height, with a 4.6mm lead pitch. RoHS compliant and AEC-Q200 qualified.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic EEE-HA1C471P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic EEE-HA1C471P technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 75.2uA |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 340mA |
| Ripple Current (AC) | 340mA |
| RoHS Compliant | Yes |
| Series | HA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA1C471P Datasheet
Download the complete datasheet for Panasonic EEE-HA1C471P to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

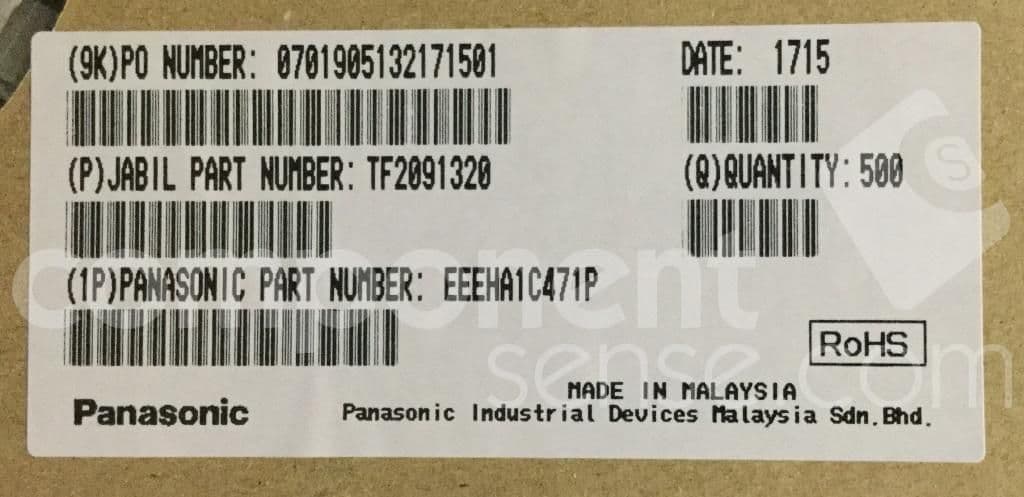

Product Images
