Surface mount aluminum electrolytic capacitor with 100µF capacitance and 20% tolerance. Features a 35V DC rated voltage, 105°C maximum operating temperature, and 1000-hour life. This radial construction, cylindrical component has a 6.3mm diameter, 7.7mm height, and 1.8mm lead pitch, with SMD/SMT termination. Rated for 84mA ripple current and compliant with RoHS and AEC-Q200 standards.
PackageRadial
Voltage35V
Capacitance100uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-HA1V101XP technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Height | 7.7mm |
| Lead Diameter | 0.65mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.8mm |
| Leakage Current | 35uA |
| Length | 8mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 84mA |
| Ripple Current (AC) | 84mA |
| RoHS Compliant | Yes |
| Series | HA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Width | 650um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA1V101XP Datasheet
Download the complete datasheet for Panasonic EEE-HA1V101XP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

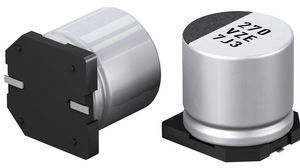

Product Images
