22µF, 35V aluminum electrolytic capacitor with 20% tolerance. Features a 6.3mm diameter, 5.4mm height, and 5.5mm length radial construction. Surface mountable with SMD/SMT termination, operating from -40°C to 105°C. Rated for 1000 hours life at 105°C, with 60mA ripple current and 3µA leakage current. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage35V
Storage5.4mm
Capacitance22uF
Quick Jump:
Technical Specifications
Panasonic EEE-HA1V220P technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Height | 5.4mm |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 60mA |
| Ripple Current (AC) | 60mA |
| RoHS Compliant | Yes |
| Series | HA |
| Size | 5.4mm |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Width | 650um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA1V220P Datasheet
Download the complete datasheet for Panasonic EEE-HA1V220P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

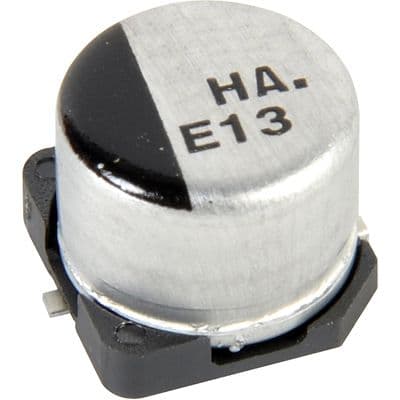

Product Images
