10 µF, 100V radial aluminum electrolytic capacitor for surface mount applications. Features a 20% capacitance tolerance, 55mA ripple current, and 10µA leakage current. Operates from -40°C to 105°C with a 2000-hour life expectancy. Packaged in tape and reel, this RoHS compliant component offers a 3.1mm lead pitch and is constructed with a cylindrical body measuring 8mm in diameter and 10.2mm in height.
PackageRadial
Voltage100V
Capacitance10uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Panasonic EEE-HA2A100P technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.1mm |
| Leakage Current | 10uA |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 55mA |
| Ripple Current (AC) | 55mA |
| RoHS Compliant | Yes |
| Series | HA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HA2A100P Datasheet
Download the complete datasheet for Panasonic EEE-HA2A100P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

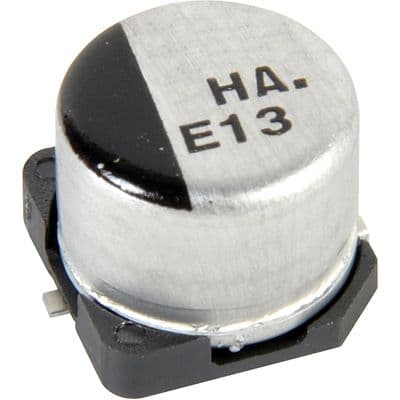

Product Images
