Aluminum electrolytic capacitor, 10µF capacitance, 16V voltage rating, and 20% tolerance. Features a 28mA ripple current capability and a 2000-hour lifespan at 105°C. This surface-mount component has a cylindrical construction with dimensions of 4mm diameter and 5.8mm height, supplied on tape and reel.
PackageRadial
Voltage16V
Capacitance10uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-HB1C100AR technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Height | 5.8mm |
| Height - Seated (Max) | 0.228inch |
| Leakage Current | 3uA |
| Length | 6.1mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 28mA |
| Ripple Current (AC) | 28mA |
| RoHS Compliant | Yes |
| Series | HB |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HB1C100AR Datasheet
Download the complete datasheet for Panasonic EEE-HB1C100AR to view detailed technical specifications.
No datasheet is available for this part.

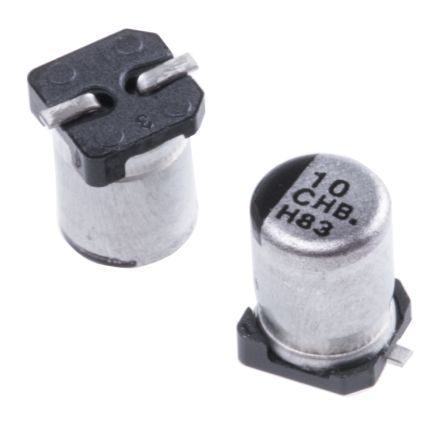

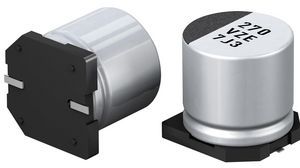

Product Images
