PackageRadial
Voltage25V
Capacitance100uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-HB1E101AP technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Height
10.2mm
Leakage Current
3uA
Length
10.5mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Ripple Current
130mA
RoHS Compliant
Yes
Series
HB
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-HB1E101AP Datasheet
Download the complete datasheet for Panasonic EEE-HB1E101AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

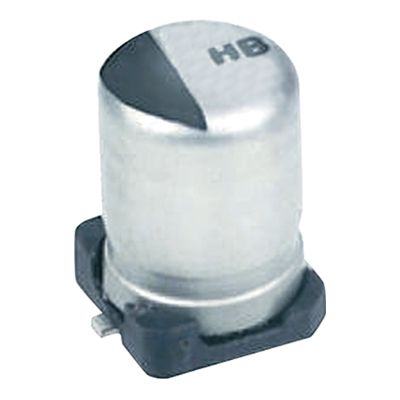

Product Images
