Surface mount aluminum electrolytic capacitor, 1µF capacitance, 50V DC rated voltage, 20% tolerance. Features a 4mm diameter, 5.8mm height, cylindrical construction, and 1.8mm lead length with 1mm pitch. Rated for 2000 hours at 105°C, with a leakage current of 3µA and ripple current of 10mA. Compliant with RoHS and AEC-Q200 standards, supplied in tape and reel packaging.
PackageRadial
Voltage50V
Capacitance1uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-HB1H1R0R technical specifications.
General
Capacitance
1uF
Package/Case
Radial
Construction
Cylindrical
Diameter
4mm
Dielectric Material
Aluminium
Height
5.8mm
Lead Free
Lead Free
Lead Length
1.8mm
Lead Pitch
1mm
Leakage Current
3uA
Length
5.5mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Ripple Current
10mA
Ripple Current (AC)
10mA
RoHS Compliant
Yes
Series
HB
Termination
SMD/SMT
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-HB1H1R0R Datasheet
Download the complete datasheet for Panasonic EEE-HB1H1R0R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

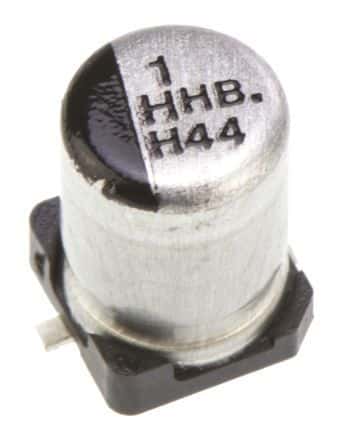

Product Images
