100µF, 6.3V aluminum electrolytic capacitor with 20% tolerance. Features a 6.3mm diameter, 5.8mm height, and 1.8mm lead pitch for surface mount applications. Rated for 71mA ripple current, 3000 hours life at 105°C, and operates from -40°C to 105°C. This RoHS compliant component is supplied on tape and reel.
PackageRadial
Voltage6.3V
Capacitance100uF
Voltage Rating6.3V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic EEE-HC0J101P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic EEE-HC0J101P technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Height | 5.8mm |
| Height - Seated (Max) | 0.24inch |
| Lead Free | Lead Free |
| Lead Pitch | 1.8mm |
| Leakage Current | 3uA |
| Length | 5.8mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 71mA |
| Ripple Current (AC) | 71mA |
| RoHS Compliant | Yes |
| Series | HC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 650um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HC0J101P Datasheet
Download the complete datasheet for Panasonic EEE-HC0J101P to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

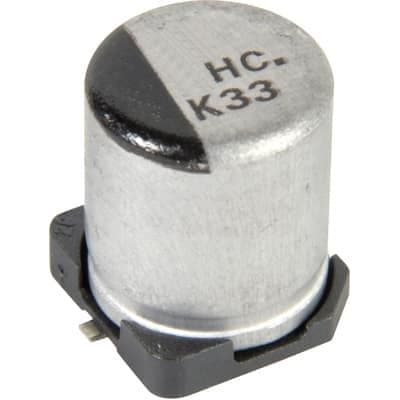

Product Images
