Aluminum electrolytic capacitor, 1000µF capacitance, 6.3V DC rated voltage, 20% tolerance. Features 313mA ripple current, 5000-hour life at 105°C, and 3µA leakage current. Surface mount radial package with 4.6mm lead pitch, 10mm diameter, and 10.2mm height. RoHS and AEC-Q200 compliant.
PackageRadial
Voltage6.3V
Capacitance1mF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic EEE-HC0J102P technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 3uA |
| Length | 10.2mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 313mA |
| Ripple Current (AC) | 313mA |
| RoHS Compliant | Yes |
| Series | HC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HC0J102P Datasheet
Download the complete datasheet for Panasonic EEE-HC0J102P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

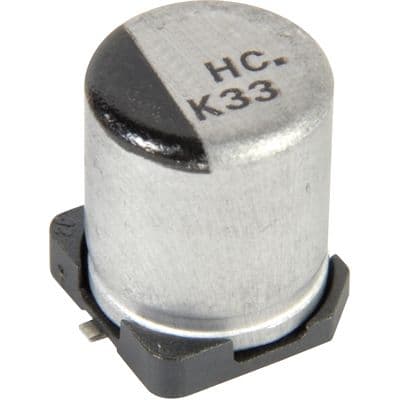

Product Images
