Surface mount aluminum electrolytic capacitor with 22µF capacitance and 20% tolerance. Features a 6.3V DC rated voltage and a maximum operating temperature of 105°C. This radial, cylindrical component has a 1mm lead pitch, 4mm diameter, and 5.5mm height, with a leakage current of 3µA and ripple current of 26mA. Rated for 3000 hours of life and AEC-Q200 compliant, it is supplied on tape and reel.
PackageRadial
Voltage6.3V
Capacitance22uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic EEE-HC0J220R technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Dielectric Material | Aluminium |
| Height | 5.5mm |
| Height - Seated (Max) | 0.228inch |
| Lead Free | Lead Free |
| Lead Pitch | 1mm |
| Leakage Current | 3uA |
| Length | 5.8mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 26mA |
| Ripple Current (AC) | 26mA |
| RoHS Compliant | Yes |
| Series | HC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 640um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HC0J220R Datasheet
Download the complete datasheet for Panasonic EEE-HC0J220R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

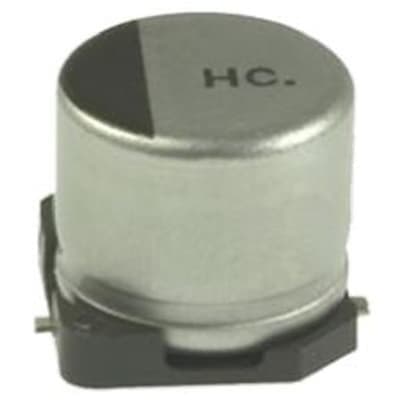

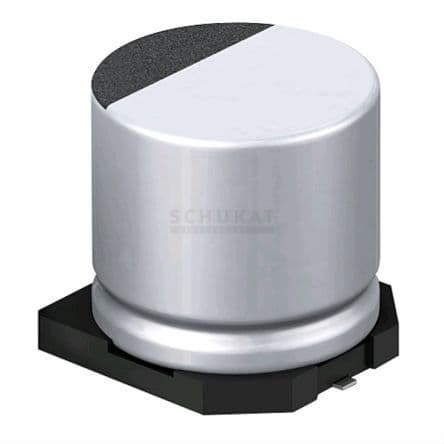

Product Images
