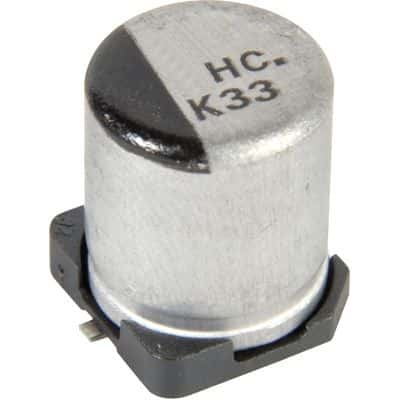

Aluminum electrolytic capacitor, 330µF capacitance, 25V voltage rating, and 20% tolerance. Features a cylindrical SMD/SMT package with dimensions of 10mm diameter and 10.2mm height. Offers a ripple current of 238mA, a leakage current of 3µA, and a lifespan of 5000 hours at 105°C. Designed for surface mount applications with a 4.6mm lead pitch and compliant with AEC-Q200 automotive standards. Packaged in tape and reel for efficient assembly.
Sign in to ask questions about the Panasonic EEE-HC1E331P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-HC1E331P technical specifications.
| Capacitance | 330uF |
| Package/Case | SMD/SMT |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 10.2mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 3uA |
| Length | 10.2mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 238mA |
| Ripple Current (AC) | 238mA |
| RoHS Compliant | Yes |
| Series | HC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 900um |
| RoHS | Compliant |
