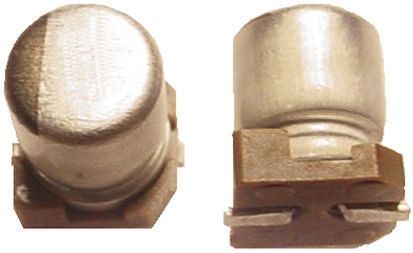

10uF, 50V radial aluminum electrolytic capacitor with 20% tolerance. Features a 5.8mm height, 6.3mm diameter, and 1.8mm lead pitch, suitable for surface mount applications. Offers 5000 hours of life at 105°C, with a dissipation factor of 12% and ESR/impedance of 4R. Includes 33mA ripple current rating and 5uA leakage current. RoHS compliant and AEC-Q200 rated.
Sign in to ask questions about the Panasonic EEE-HD1H100P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-HD1H100P technical specifications.
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 4R |
| Height | 5.8mm |
| Impedance | 4R |
| Lead Free | Lead Free |
| Lead Pitch | 1.8mm |
| Leakage Current | 5uA |
| Length | 5.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 33mA |
| Ripple Current (AC) | 33mA |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| RoHS | Compliant |
