Aluminum electrolytic capacitor, 100µF capacitance, 50V DC rated voltage, and 20% tolerance. Features 94mA ripple current, 800mΩ ESR, and 50µA leakage current. Operates from -40°C to 105°C with a 5000-hour lifespan. Surface mountable in a 10mm diameter, 10.2mm height cylindrical package with a 4.6mm lead pitch. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage50V
Capacitance100uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-HD1H101P technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.14% |
| ESR (Equivalent Series Resistance) | 800mR |
| Height | 10.2mm |
| Impedance | 800mR |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 50uA |
| Length | 10.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 94mA |
| Ripple Current (AC) | 94mA |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-HD1H101P Datasheet
Download the complete datasheet for Panasonic EEE-HD1H101P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

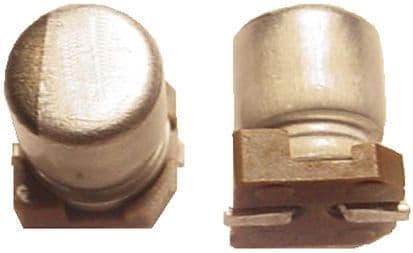

Product Images
