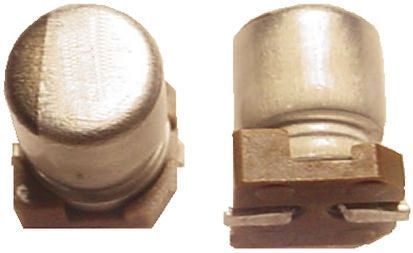

Aluminum electrolytic capacitor with 220µF capacitance and 35V voltage rating. Features 20% tolerance, 800mΩ ESR, and 220mA ripple current. Operates from -40°C to 105°C with a 5000-hour lifespan. Surface mountable in a cylindrical radial package (10 x 10.2mm). Compliant with RoHS and AEC-Q200 standards.
Sign in to ask questions about the Panasonic EEE-HD1V221AP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEE-HD1V221AP technical specifications.
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.14% |
| ESR (Equivalent Series Resistance) | 800mR |
| Height | 10.2mm |
| Impedance | 800mR |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 77uA |
| Length | 10.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 220mA |
| Ripple Current (AC) | 220mA |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| RoHS | Compliant |
