220µF, 16V aluminum electrolytic capacitor with 20% tolerance, designed for surface mount applications. Features a 300mΩ ESR and 270mA ripple current rating. Operates within a -40°C to 125°C temperature range, offering 2000 hours of life. This cylindrical capacitor is RoHS compliant and AEC-Q200 qualified.
PackageSMD/SMT
Voltage16V
Capacitance220uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-TG1C221P technical specifications.
General
| Capacitance | 220uF |
| Package/Case | SMD/SMT |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.23% |
| ESR (Equivalent Series Resistance) | 300mR |
| Height | 10.2mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 270mA |
| Ripple Current (AC) | 270mA |
| RoHS Compliant | Yes |
| Series | TG |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-TG1C221P Datasheet
Download the complete datasheet for Panasonic EEE-TG1C221P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

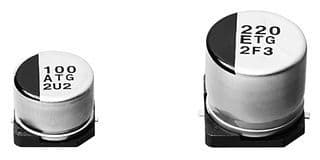

Product Images
