330uF, 25V radial aluminum electrolytic capacitor with 20% tolerance. Features 300mR ESR, 0.18% dissipation factor, and 270mA ripple current. Operates from -40°C to 125°C with a 2000-hour life rating. Surface mountable in a cylindrical construction, supplied on tape and reel. AEC-Q200 and RoHS compliant.
PackageRadial
Voltage25V
Capacitance330uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEE-TG1E331UP technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.18% |
| ESR (Equivalent Series Resistance) | 300mR |
| Height | 10.2mm |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 270mA |
| Ripple Current (AC) | 270mA |
| RoHS Compliant | Yes |
| Series | TG |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-TG1E331UP Datasheet
Download the complete datasheet for Panasonic EEE-TG1E331UP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

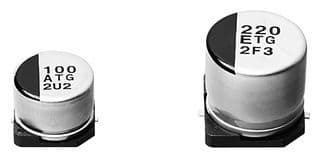

Product Images
