Surface mount aluminum electrolytic capacitor with 100µF capacitance and 50V voltage rating. Features a 20% tolerance, 500mΩ ESR, and 221mA ripple current. Operates from -40°C to 125°C with a 2000-hour life expectancy. Constructed with a cylindrical aluminum dielectric, it measures 10mm in diameter and 10.2mm in height, with a 2mm lead pitch. This RoHS compliant component is supplied on tape and reel, suitable for PCB mounting.
PackageRadial
Voltage50V
Capacitance100uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-TG1H101UP technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.14% |
| ESR (Equivalent Series Resistance) | 500mR |
| Height | 10.2mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Leakage Current | 50uA |
| Length | 10.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 221mA |
| Ripple Current (AC) | 221mA |
| RoHS Compliant | Yes |
| Series | TG |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-TG1H101UP Datasheet
Download the complete datasheet for Panasonic EEE-TG1H101UP to view detailed technical specifications.
No datasheet is available for this part.

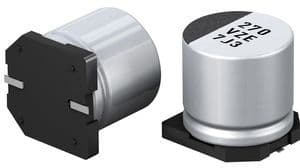

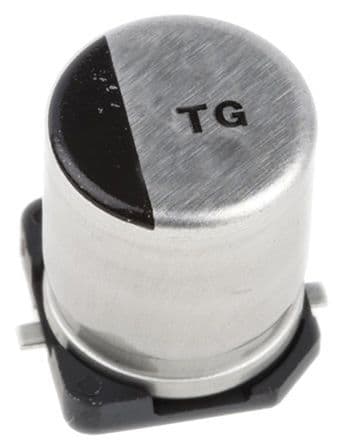

Product Images
