220µF, 35V aluminum electrolytic capacitor with 20% tolerance. Features a 300mΩ ESR, 270mA ripple current, and 77µA leakage current. Operating temperature range from -40°C to 125°C, with a 2000-hour life rating. Surface mount radial construction in a cylindrical package, compliant with RoHS and AEC-Q200 standards.
PackageRadial
Voltage35V
Capacitance220uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-TG1V221UP technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.16%
ESR (Equivalent Series Resistance)
300mR
Height
10.2mm
Lead Free
Lead Free
Leakage Current
77uA
Length
10.2mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Ripple Current
270mA
Ripple Current (AC)
270mA
RoHS Compliant
Yes
Series
TG
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
900um
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-TG1V221UP Datasheet
Download the complete datasheet for Panasonic EEE-TG1V221UP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

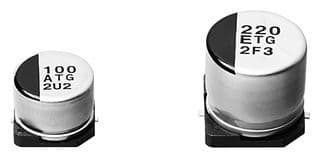

Product Images
