Aluminum electrolytic capacitor, 470µF capacitance, 10V DC rated voltage, 20% tolerance. Features 200mΩ ESR, 270mA ripple current, and 3000 hours life at 125°C. Surface mount radial construction, 10mm diameter, 10.2mm height, 4.6mm lead pitch. RoHS compliant.
PackageRadial
Voltage10V
Capacitance470uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-TK1A471UP technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| ESR (Equivalent Series Resistance) | 200mR |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 47uA |
| Length | 10.2mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 270mA |
| Ripple Current (AC) | 270mA |
| RoHS Compliant | Yes |
| Series | TK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-TK1A471UP Datasheet
Download the complete datasheet for Panasonic EEE-TK1A471UP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

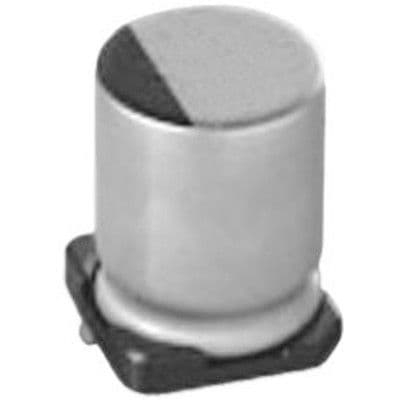

Product Images
