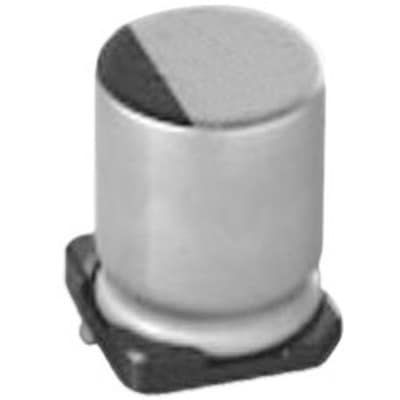

Aluminum electrolytic capacitor, 4700µF capacitance, 10V DC rated voltage, 20% tolerance. Features 75mΩ ESR, 1.3A ripple current, and a maximum operating temperature of 125°C. Surface mount radial construction with 18mm diameter and 16.5mm height. Rated for 2000 hours of life.
PackageRadial
Voltage10V
Capacitance4.7mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEE-TK1A472AM technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 18mm |
| Dissipation Factor | 0.38% |
| ESR (Equivalent Series Resistance) | 75mR |
| Height | 16.5mm |
| Lead Diameter | 1.2mm |
| Lead Free | Lead Free |
| Lead Pitch | 6.7mm |
| Leakage Current | 470uA |
| Length | 16.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 125 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 1.3A |
| Ripple Current (AC) | 1.3A |
| RoHS Compliant | Yes |
| Series | TK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-TK1A472AM Datasheet
Download the complete datasheet for Panasonic EEE-TK1A472AM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
