Surface mount aluminum electrolytic capacitor with 330uF capacitance and 20% tolerance. Features a 16V DC voltage rating, 125°C maximum operating temperature, and 3000-hour lifespan. This cylindrical component has a 200mR ESR, 52.8uA leakage current, and 270mA ripple current. Packaged in tape and reel for surface mount applications.
PackageSMD/SMT
Voltage16V
Capacitance330uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEE-TK1C331UP technical specifications.
General
| Capacitance | 330uF |
| Package/Case | SMD/SMT |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.23% |
| ESR (Equivalent Series Resistance) | 200mR |
| Height | 10.2mm |
| Height - Seated (Max) | 0.402inch |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.6mm |
| Leakage Current | 52.8uA |
| Length | 10.2mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 270mA |
| Ripple Current (AC) | 270mA |
| RoHS Compliant | Yes |
| Series | TK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-TK1C331UP Datasheet
Download the complete datasheet for Panasonic EEE-TK1C331UP to view detailed technical specifications.
No datasheet is available for this part.

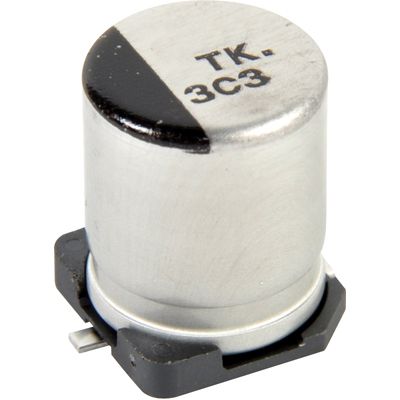

Product Images
