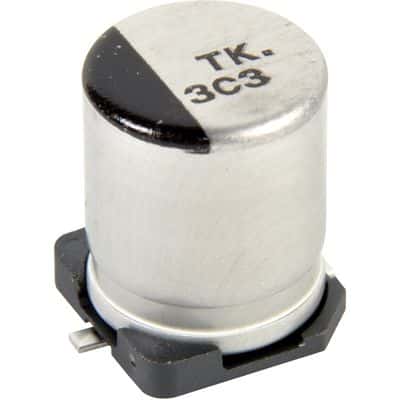

Surface mount aluminum electrolytic capacitor with 470µF capacitance and 50V DC rated voltage, featuring 20% tolerance. Offers 150mΩ ESR and 900mA ripple current at 125°C maximum operating temperature. Cylindrical SMD package measures 16mm diameter and 16.5mm height, suitable for tape and reel packaging. Designed for automotive applications with a 2000-hour life expectancy.
PackageSMD/SMT
Voltage50V
Capacitance470uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEE-TK1H471AM technical specifications.
General
| Capacitance | 470uF |
| Package/Case | SMD/SMT |
| Construction | Cylindrical |
| Diameter | 16mm |
| Dissipation Factor | 0.14% |
| ESR (Equivalent Series Resistance) | 150mR |
| Height | 16.5mm |
| Height - Seated (Max) | 0.65inch |
| Lead Diameter | 1.2mm |
| Lead Free | Lead Free |
| Lead Pitch | 6.7mm |
| Leakage Current | 235uA |
| Length | 16.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 900mA |
| Ripple Current (AC) | 900mA |
| RoHS Compliant | Yes |
| Series | TK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
