100µF, 63V radial aluminum electrolytic capacitor with 20% tolerance. Features 260mΩ ESR, 350mA ripple current, and 63µA leakage current. Operates from -40°C to 125°C with a 2000-hour life rating. Surface mountable in a cylindrical package with 4.4mm lead pitch.
PackageRadial
Voltage63V
Capacitance100uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEE-TK1J101AQ technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 12.5mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 260mR |
| Height | 13.5mm |
| Height - Seated (Max) | 0.531inch |
| Lead Diameter | 0.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.4mm |
| Leakage Current | 63uA |
| Length | 13.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 350mA |
| Ripple Current (AC) | 350mA |
| RoHS Compliant | Yes |
| Series | TK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEE-TK1J101AQ Datasheet
Download the complete datasheet for Panasonic EEE-TK1J101AQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

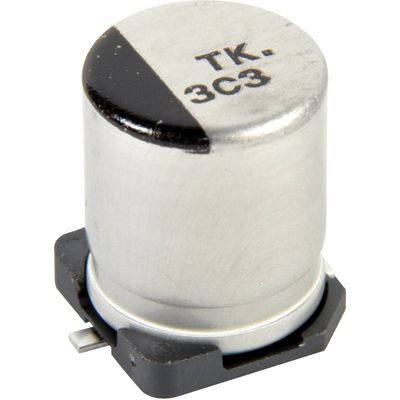

Product Images
