100µF, 35V aluminum electrolytic capacitor with 20% tolerance. Features a low ESR of 200mΩ and a ripple current rating of 270mA. Designed for surface mount applications with a cylindrical construction, measuring 10mm in diameter and 10.2mm in height. Operates across a wide temperature range from -40°C to 125°C, offering a lifespan of 3000 hours. Supplied in tape and reel packaging.
PackageRadial
Voltage35V
Capacitance100uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEE-TK1V101P technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
ESR (Equivalent Series Resistance)
200mR
Height
10.2mm
Lead Diameter
0.9mm
Lead Free
Lead Free
Lead Pitch
4.6mm
Leakage Current
35uA
Length
10.2mm
Life (Hours)
3000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
270mA
Ripple Current (AC)
270mA
RoHS Compliant
Yes
Series
TK
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
900um
Compliance
RoHS
Compliant
Datasheet
Panasonic EEE-TK1V101P Datasheet
Download the complete datasheet for Panasonic EEE-TK1V101P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

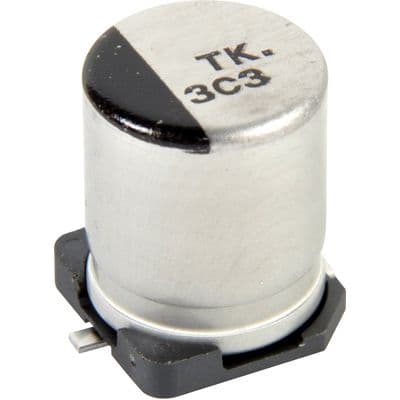

Product Images
