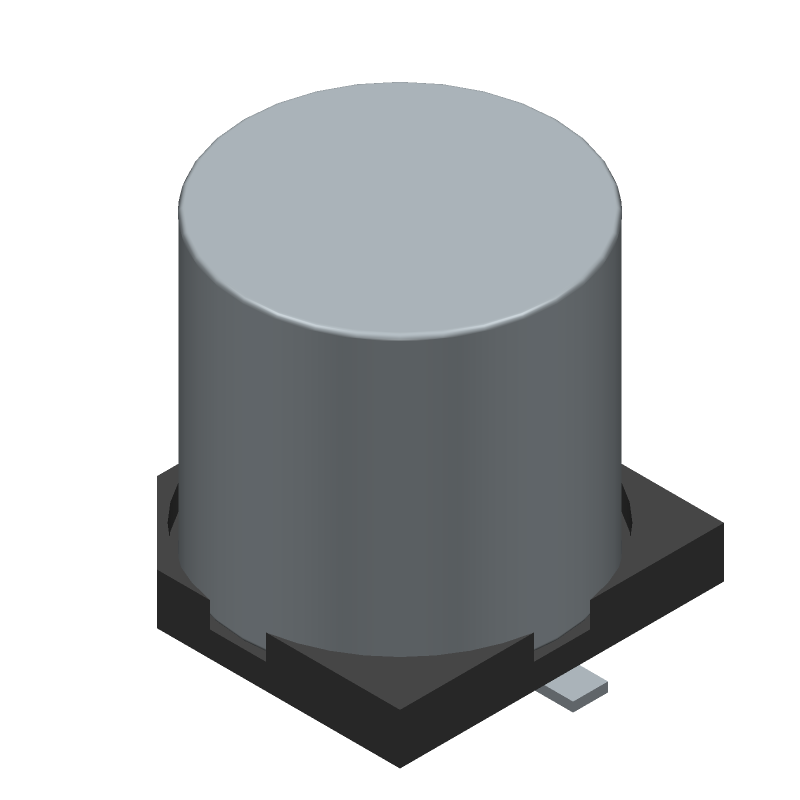

This aluminum electrolytic capacitor from Panasonic features a capacitance of 47uF and a DC rated voltage of 63V. It is a polarized component with a maximum operating temperature of 85 degrees Celsius and a minimum operating temperature of -40 degrees Celsius. The capacitor measures 10.3mm in width and 10.3mm in length, with a height of 10.2mm. It is designed for surface mount applications.
Capacitance47
PolarityPOLARIZED
Quick Jump:
Technical Specifications
Panasonic EEE1JA470P technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Width | 10.3 |
| Length | 10.3 |
| Polarity | POLARIZED |
| Capacitance | 47 |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR |
| DC Rated Voltage | 63 |
| Height | 10.2 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Panasonic EEE1JA470P Datasheet
Download the complete datasheet for Panasonic EEE1JA470P to view detailed technical specifications.
No datasheet is available for this part.
