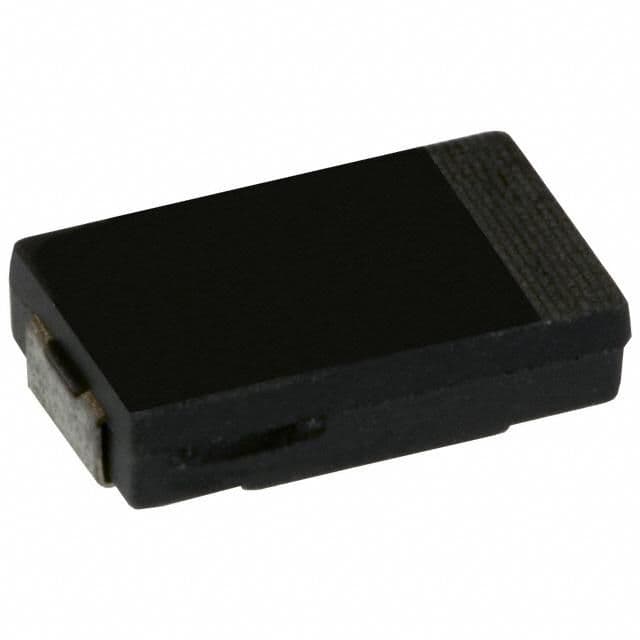

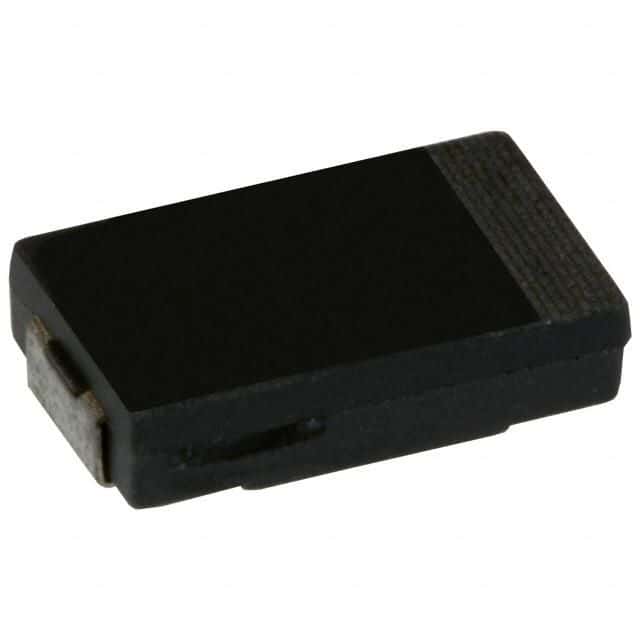

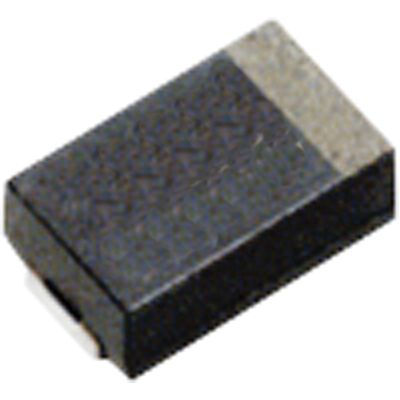

Surface mount aluminum polymer capacitor with 47µF capacitance and 20% tolerance. Features a 6.3V DC rating, 1.6A ripple current, and 18mΩ ESR. Operating temperature range from -40°C to 105°C. Housed in a 2917 (7343 metric) case code with a flat construction, measuring 7.3mm in length, 4.3mm in width, and 1.8mm in height. RoHS compliant with 1000 hours of life at rated conditions.
Package2917
Voltage6.3V
Capacitance47uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic EEF-CD0J470R technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.06%
ESR (Equivalent Series Resistance)
18mR
Height
1.8mm
Height - Seated (Max)
0.071inch
Lead Free
Lead Free
Leakage Current
11.9uA
Length
7.3mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
2.5A
Ripple Current (AC)
1.6A
RoHS Compliant
Yes
Series
SP-Cap CD
Termination
SMD/SMT
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEF-CD0J470R Datasheet
Download the complete datasheet for Panasonic EEF-CD0J470R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
