Surface mount aluminum polymer capacitor, 47µF capacitance with 20% tolerance, rated for 8V DC. Features a low ESR of 25mΩ and a ripple current capability of 1.8A. Constructed with a flat profile, measuring 7.3mm in length, 4.3mm in width, and 1.8mm in height, within a 2917 (7343 metric) case code. Operates across a temperature range of -40°C to 105°C, with a rated life of 1000 hours. This RoHS compliant component is supplied on tape and reel.
Package2917
Capacitance47uF
Resistance0.025R
Voltage Rating8V
Quick Jump:
Technical Specifications
Panasonic EEF-CD0K470R technical specifications.
General
| Capacitance | 47uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 0.06% |
| ESR (Equivalent Series Resistance) | 25mR |
| Height | 1.8mm |
| Lead Free | Lead Free |
| Leakage Current | 15.1uA |
| Length | 7.3mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 0.025R |
| Ripple Current | 1.8A |
| RoHS Compliant | Yes |
| Series | SP-Cap CD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 8V |
| DC Rated Voltage | 8V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEF-CD0K470R Datasheet
Download the complete datasheet for Panasonic EEF-CD0K470R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

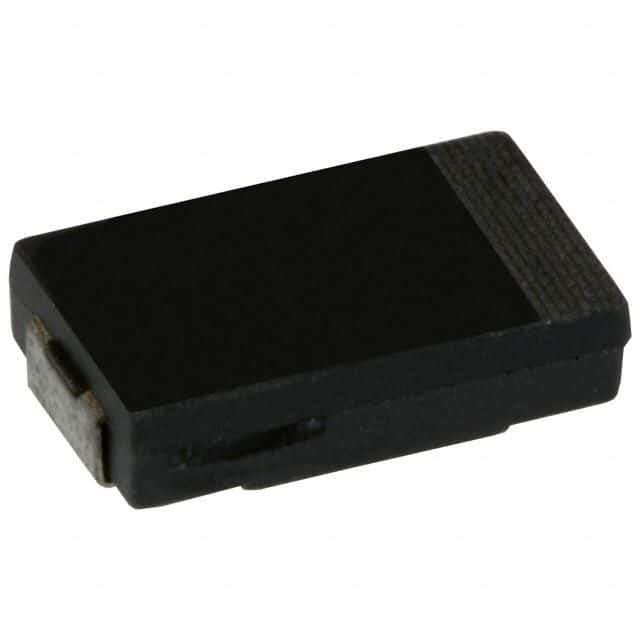

Product Images
