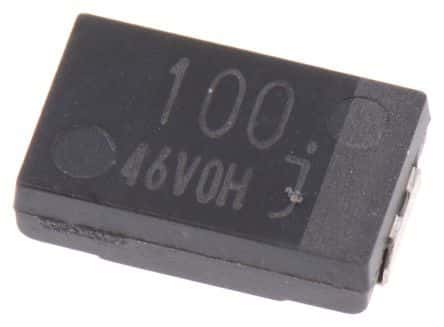

Surface mount aluminum polymer electrolytic capacitor, 100µF capacitance with 20% tolerance, rated for 6.3V DC. Features a low ESR of 15mΩ and a ripple current capability of 2.7A. Constructed with a flat profile in a 2917 (7343 metric) case code, measuring 7.3mm L x 4.3mm W x 1.9mm H. Operates across a temperature range of -40°C to 105°C, with a rated life of 1000 hours.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EEF-CX0J101R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 100uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 0.06% |
| ESR (Equivalent Series Resistance) | 15mR |
| Height | 1.9mm |
| Lead Diameter | 2.4mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.3mm |
| Leakage Current | 63uA |
| Length | 7.3mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.7A |
| Ripple Current (AC) | 2.7A |
| RoHS Compliant | Yes |
| Series | SP-Cap CX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Weight | 0.004586oz |
| Width | 4.3mm |
| RoHS | Compliant |
