Polymer aluminum electrolytic capacitor, 330µF capacitance, 2V DC rated voltage, with 20% tolerance. Features 6mΩ ESR, 3.5A ripple current, and 105°C maximum operating temperature. Surface mount package with dimensions 7.3mm (L) x 4.3mm (W) x 1.9mm (H). Rated for 1000 hours of operation.
Package2917
Voltage2V
Capacitance330uF
Voltage Rating2V
Quick Jump:
Technical Specifications
Panasonic EEF-LX0D331R technical specifications.
General
| Capacitance | 330uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 6mR |
| Height | 1.9mm |
| Height - Seated (Max) | 0.083inch |
| Lead Diameter | 2.4mm |
| Leakage Current | 66uA |
| Length | 7.3mm |
| Life (Hours) | 1000Hour |
| Material | Polymer |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 3.5A |
| Ripple Current (AC) | 3.5A |
| RoHS Compliant | Yes |
| Series | SP-Cap LX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 2V |
| Voltage Rating | 2V |
| DC Rated Voltage | 2V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEF-LX0D331R Datasheet
Download the complete datasheet for Panasonic EEF-LX0D331R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

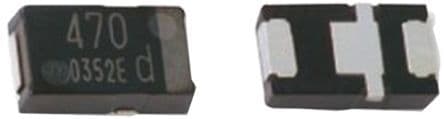

Product Images
