Aluminum polymer capacitor with 470µF capacitance and 2V DC rated voltage, featuring 20% tolerance. Surface mount device with 7.3mm length, 4.3mm width, and 1.9mm height. Offers 4A ripple current, 4.5mΩ ESR, and 94µA leakage current. Operates from -40°C to 105°C with a 1000-hour life rating.
Package2917
Voltage2V
Capacitance470uF
Voltage Rating2V
Quick Jump:
Technical Specifications
Panasonic EEF-SX0D471E4 technical specifications.
General
Capacitance
470uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.06%
ESR (Equivalent Series Resistance)
4.5mR
Height
1.9mm
Lead Free
Lead Free
Leakage Current
94uA
Length
7.3mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount, PCB
Package Quantity
3500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
4A
Ripple Current (AC)
4A
RoHS Compliant
Yes
Series
SP-Cap SX
Termination
SMD/SMT
Tolerance
20%
Voltage
2V
Voltage Rating
2V
DC Rated Voltage
6.3V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic EEF-SX0D471E4 Datasheet
Download the complete datasheet for Panasonic EEF-SX0D471E4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

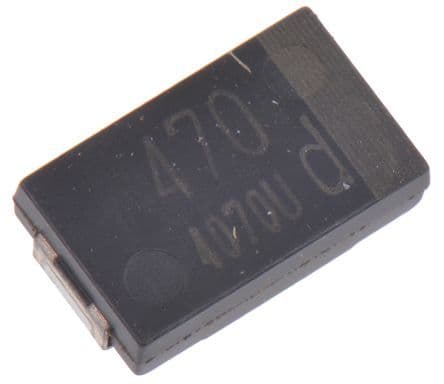

Product Images
