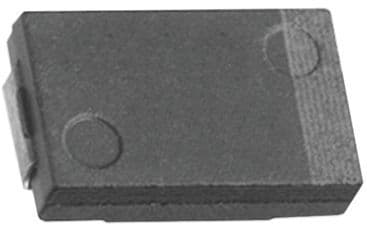

150µF, 6.3V polymer aluminum electrolytic capacitor featuring 9mΩ ESR and 3A ripple current. Surface mount design with a 2917 (7343 metric) case code, offering a flat construction with dimensions of 7.3mm length, 4.3mm width, and 1.9mm height. Operates across a -40°C to 105°C temperature range with a 1000-hour life rating. Lead-free and RoHS compliant.
Package2917
Voltage6.3V
Capacitance150uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic EEF-SX0J151ER technical specifications.
General
| Capacitance | 150uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 0.06% |
| ESR (Equivalent Series Resistance) | 9mR |
| Height | 1.9mm |
| Lead Free | Lead Free |
| Leakage Current | 94.5uA |
| Length | 7.3mm |
| Life (Hours) | 1000Hour |
| Material | Polymer |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 3A |
| Ripple Current (AC) | 3A |
| RoHS Compliant | Yes |
| Series | SP-Cap SX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
