Radial aluminum electrolytic capacitor with 1.5mF capacitance and 20% tolerance, rated for 250V DC. Features a 35mm diameter, 50mm height, and 10mm lead pitch with 0.8mm lead diameter for through-hole mounting. Offers 3000 hours of life at 105°C, 99mR ESR, and 3.56A ripple current at 120Hz. Snap-in termination and lead-free construction ensure compatibility.
PackageRadial
Capacitance1.5mF
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EET-ED2E152EA technical specifications.
General
| Capacitance | 1.5mF |
| Package/Case | Radial |
| Diameter | 35mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 99mR |
| Height | 50mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 3.56A |
| Ripple Current (AC) | 3.56A |
| RoHS Compliant | Yes |
| Series | TS-ED |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-ED2E152EA Datasheet
Download the complete datasheet for Panasonic EET-ED2E152EA to view detailed technical specifications.
No datasheet is available for this part.

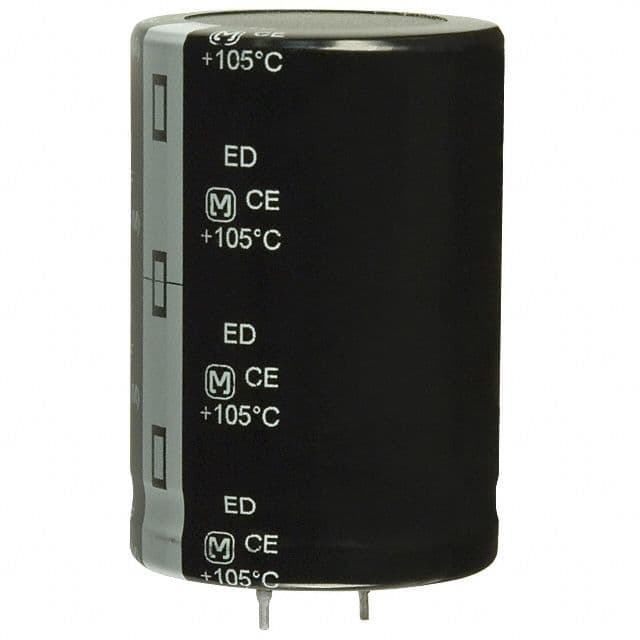

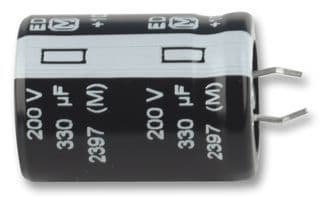

Product Images
