Aluminum electrolytic capacitor with 120µF capacitance and 450V DC rated voltage. Features 20% tolerance, 1.105Ω ESR at 120Hz, and 1.02A ripple current. Snap-in termination with a 10mm lead pitch, housed in a 25mm diameter by 35mm height radial package. Designed for through-hole mounting, operating from -25°C to 105°C with a 3000-hour life expectancy.
PackageRadial
Capacitance120uF
Resistance1.105R
Voltage Rating450V
Quick Jump:
Technical Specifications
Panasonic EET-ED2W121CA technical specifications.
General
| Capacitance | 120uF |
| Package/Case | Radial |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 1.105R |
| Height | 35mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Length | 35mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 1.105R |
| Ripple Current | 1.02A |
| Ripple Current (AC) | 1.02A |
| RoHS Compliant | Yes |
| Series | TS-ED |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-ED2W121CA Datasheet
Download the complete datasheet for Panasonic EET-ED2W121CA to view detailed technical specifications.
No datasheet is available for this part.

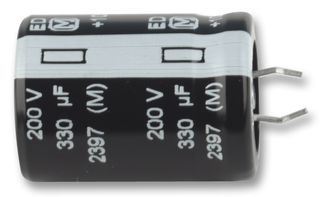

Product Images
