390µF, 350V radial aluminum electrolytic capacitor with 20% tolerance. Features 425mΩ ESR at 120Hz, 1.3A ripple current, and a 2000-hour life at 105°C. Snap-in termination for through-hole mounting, with a 30mm diameter and 35mm height. RoHS compliant.
PackageRadial
Capacitance390uF
Resistance0.425R
Voltage Rating350V
Quick Jump:
Technical Specifications
Panasonic EET-HC2V391DA technical specifications.
General
| Capacitance | 390uF |
| Package/Case | Radial |
| Diameter | 30mm |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 425mR |
| Height | 35mm |
| Lead Pitch | 10mm |
| Length | 35mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Resistance | 0.425R |
| Ripple Current | 1.3A |
| RoHS Compliant | Yes |
| Series | TS-HC |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HC2V391DA Datasheet
Download the complete datasheet for Panasonic EET-HC2V391DA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

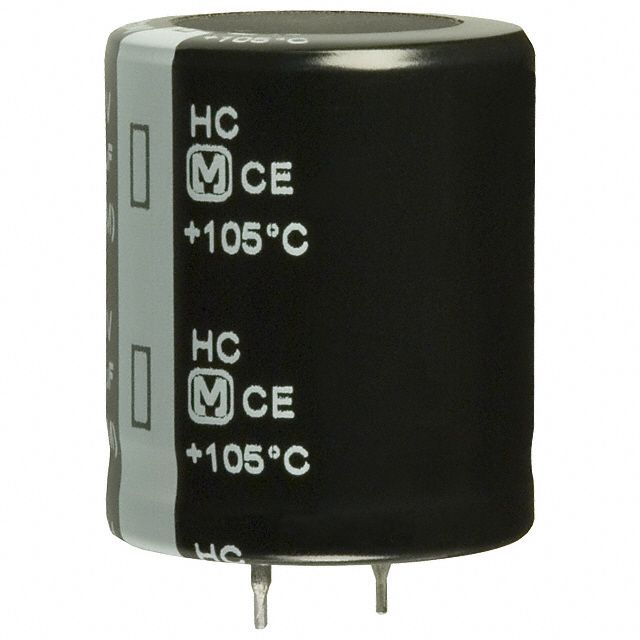

Product Images
