Snap-in aluminum electrolytic capacitor with 470µF capacitance and 450V DC rated voltage. Features a 105°C maximum operating temperature, 2000-hour life at rated temperature, and 1.74A ripple current at 120Hz. Offers 388mΩ ESR and a 10mm lead pitch. Through-hole mounting with radial package, 35mm diameter, and 45mm height.
PackageRadial
Capacitance470uF
Resistance0.388R
Voltage Rating450V
Quick Jump:
Technical Specifications
Panasonic EET-HC2W471EA technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 35mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 15% |
| ESR (Equivalent Series Resistance) | 388mR |
| Height | 45mm |
| Height - Seated (Max) | 1.85inch |
| Lead Pitch | 10mm |
| Length | 45mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 0.388R |
| Ripple Current | 1.74A |
| Ripple Current (AC) | 1.74A |
| RoHS Compliant | Yes |
| Series | TS-HC |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EET-HC2W471EA Datasheet
Download the complete datasheet for Panasonic EET-HC2W471EA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

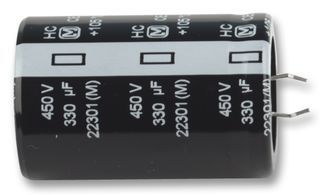

Product Images
